Specifications

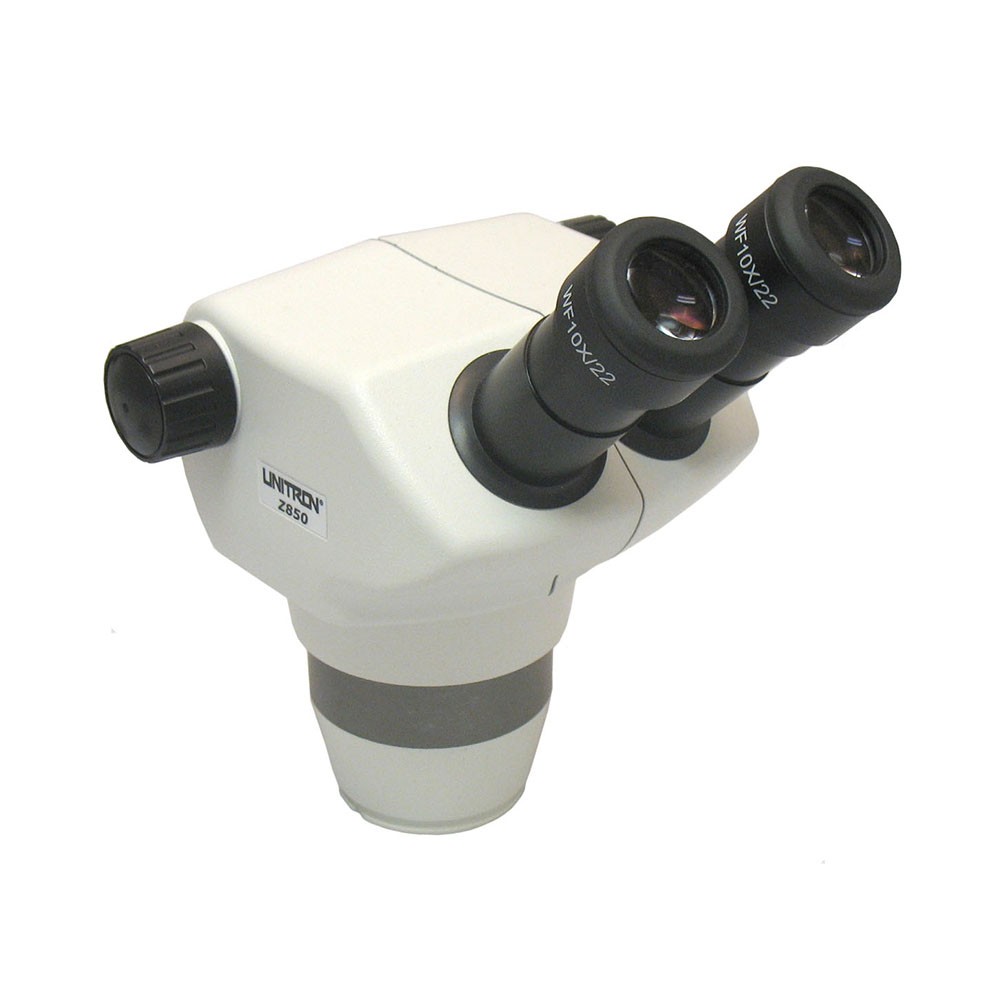

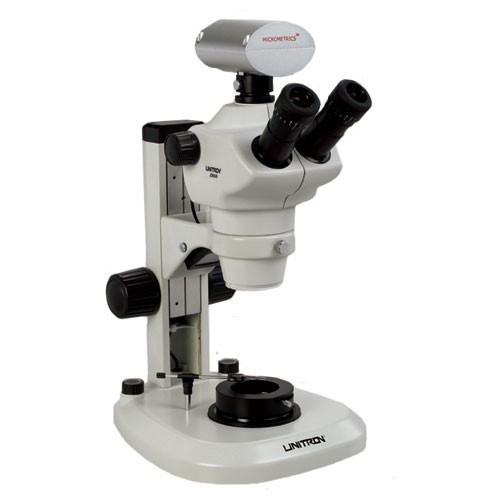

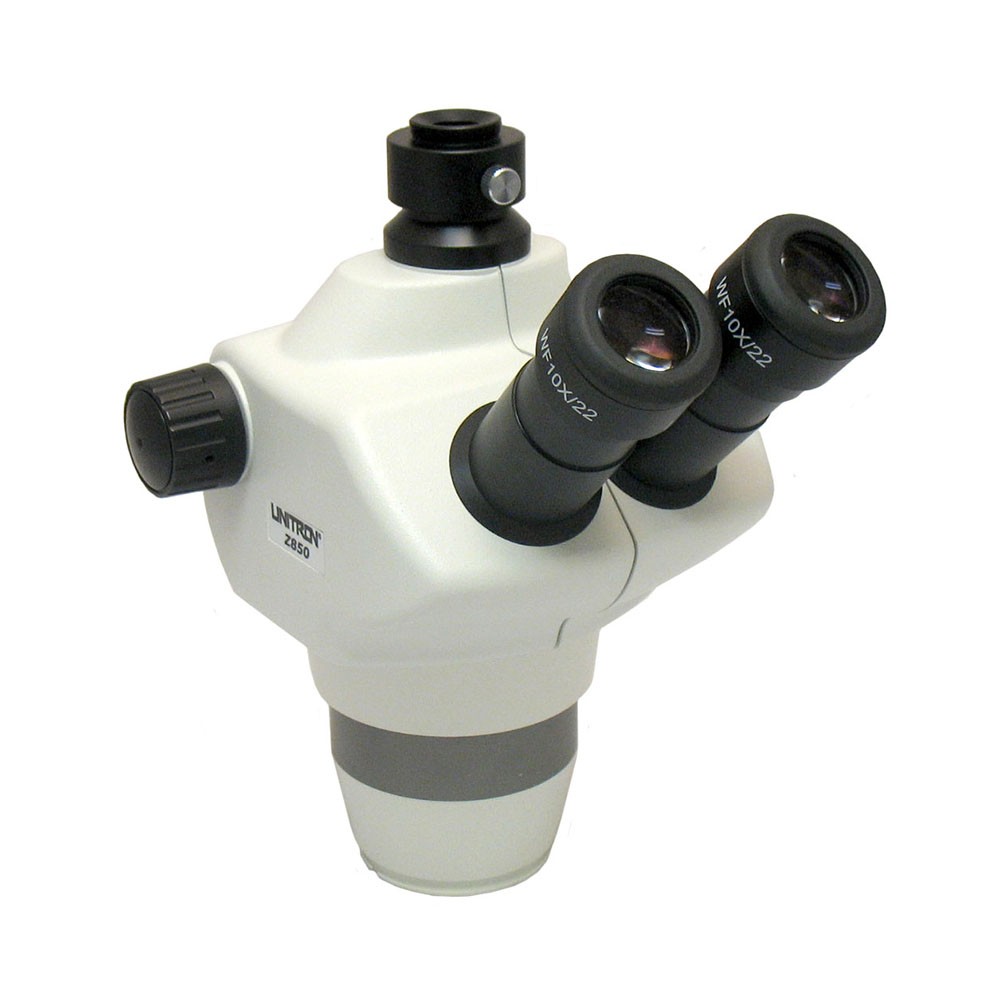

• Available with Binocular viewing head with 45° viewing angle, or Trinocular viewing head with 45° viewing angle
• Fixed glass lens shield
• Widefield 10x/22mm focusing eyepieces
• 0.8x – 5.0x zoom magnification range
• 6.3:1 Zoom ratio
• Magnification range 8x-50x (with 10x eyepieces), with click stops at 1x, 2x, 3x, 4x and 5x
• Interpupillary Distance Adjustment 52mm – 75mm
• Field of view 27.5mm - 4.4mm
• 115mm working distance
• Darkfield condenser with adjustable iris diaphragm

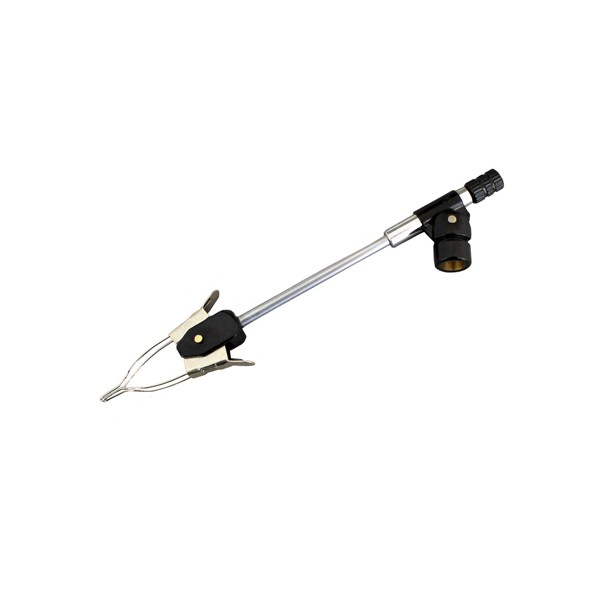

• Wire stone holder / gem clamp
• LED stand with variable LED incident (12V/2W) and transmitted (12V/4W) illumination
• Focusing stand with stage clips
• 100mm frosted and clear glass plates, black & white stage plates
• Base dimensions (LWH): 240mm x 292mm x 318mm
• Universal power supply 100V to 240V, voltage sensitive, integrated
• Airtight and anti-mold design
• Note: Excelis™ HDS and Excelis HDS Lite cameras are not recommended for use with the Z850 series microscopes
• Shipping weight 18lbs.
