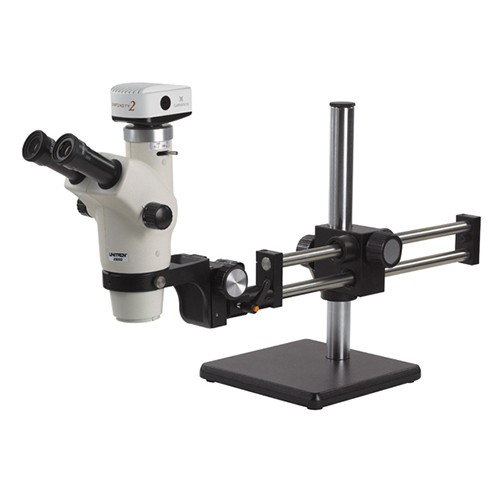

Z650HR Trinocular High Resolution Zoom Stereo Microscope On Ball Bearing Boom Stand

Quick Overview

Trinocular viewing head inclined at 30°
0/100 light split
with built-in 0.55x c-mount camera adapter
Widefield 10x/23mm focusing eyepieces with roll down eyeguards
0.6x – 5.0x zoom magnification range
8:1 zoom ratio
Magnification range 6x-50x (with 10x eyepieces), with click stops at 1x, 2x, 3x, 4x and 5x
Interpupillary Distance Adjustment 55mm – 75mm
115mm working distance
Ball bearing boom stand with bonder arm focusing mount
Base: 254mm x 254mm (10" x 10")
Vertical Post: 394mm
Horizontal Post: 585mm
Weight: 42lbs
Airtight and anti-mold design
Shipping weight 51lbs.

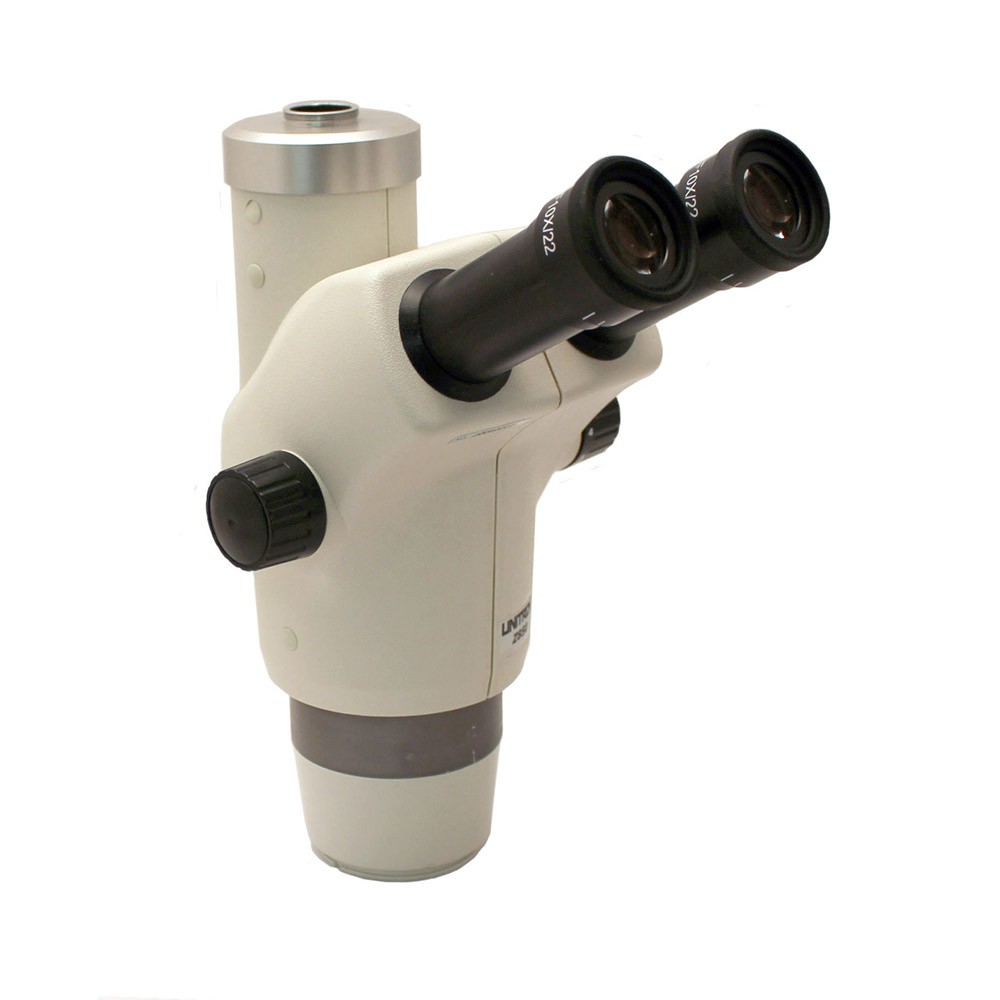

134-11-03		Z650HR Trinocular Viewing Head

131-10-15		WF15x/16mm Focusing Eyepiece
131-10-20		WF20x/12.5mm Focusing Eyepiece
131-10-01		Rubber Eyeguards (Pair)

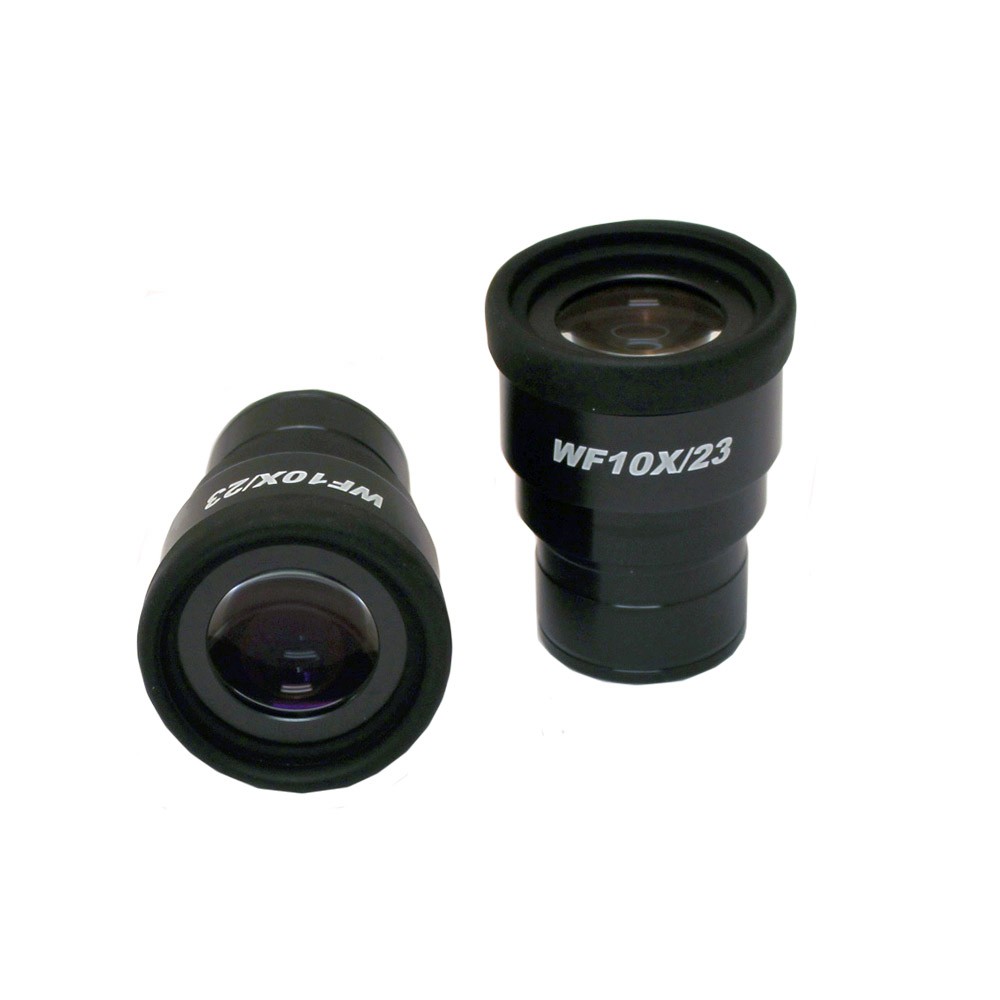

134-10-11		WF10x/23mm Focusing Eyepiece with Roll Down Eyeguard

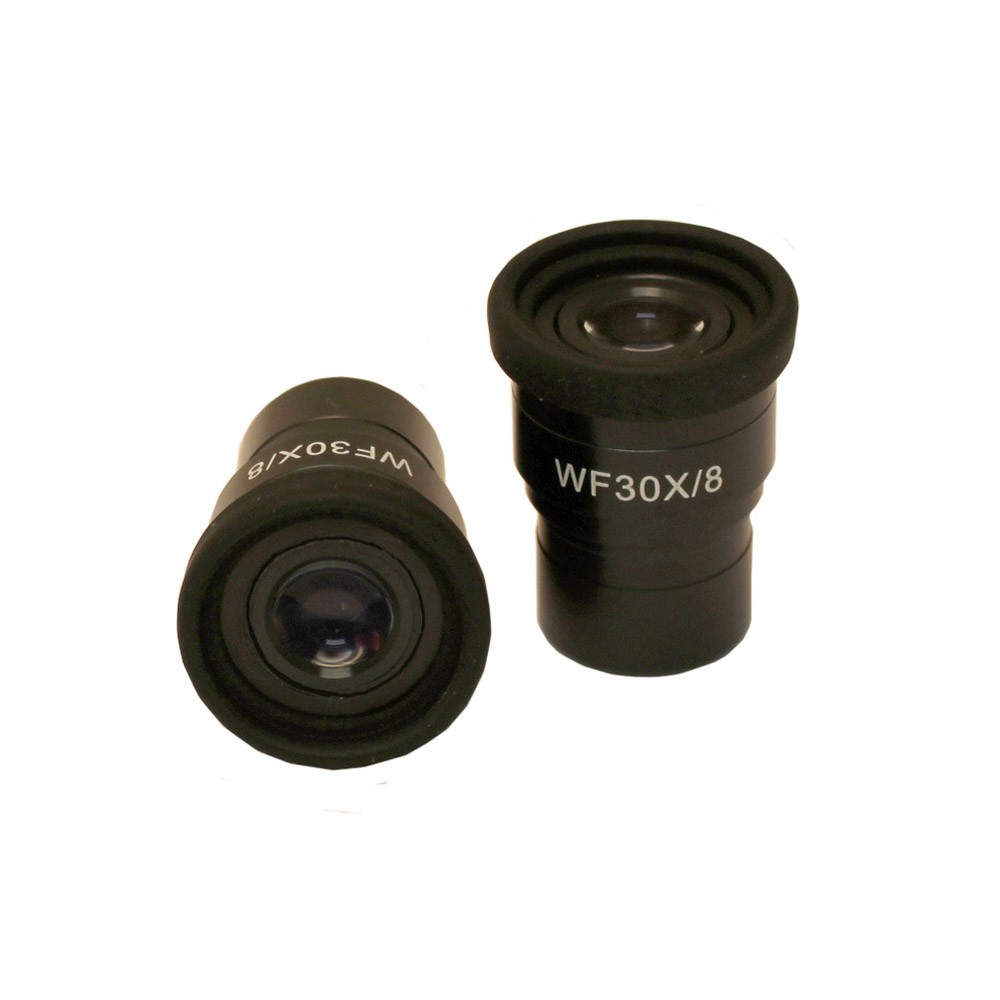

134-10-30		WF30x/8mm Focusing Eyepiece with Built-In Diopter Adjustment and Eyeguard

131-12-20		Stage Micrometer
131-12-01		26.5mm Eyepiece Reticle, 10mm/100 divisions with Crossline
131-12-05		26.5mm Eyepiece Reticle, 10mm/100 divisions
131-12-10		20mm Eyepiece Reticle, 10mm/100 divisions with Crossline
131-12-11		20mm Eyepiece Reticle, 10mm/100 divisions
149-12-00		Reticle Installation

131-15-05		0.5x/211mm Auxiliary Objective
131-20-40		0.5x Auxiliary Objective Riser Adapter
131-15-07		0.7x Auxiliary Objective
131-15-02		2.0x/43.5mm Auxiliary Objective
131-15-00		Fiber Optic Ring Light Adapter (Required for Dolan Jenner Illuminators)
131-15-01		1x Glass Lens Shield (Removable)
