Z850 Zoom Stereo Microscope Series
The Unitron Z850 Series with a 6.3:1 zoom ratio (8x - 50x magnification range when using 10x eyepieces) is an ideal choice for industrial inspection, assembly, quality control, OEM integration, research and education applications requiring a higher magnification range.
The Z850 Series is a versatile, high performance, ergonomically designed zoom stereo microscope ruggedly built to withstand years of heavy usage.
The Z850 Series is available with either a binocular or trinocular viewing head.
Pre-Configured Systems
Z850 Zoom Stereo Microscope Series Optical Data
| Auxiliary Objective | Working Distance (mm) | EYEPIECE | |||||
|---|---|---|---|---|---|---|---|
| WF 10X/22 | WF 15X/16 | WF 20X/12.5 | |||||
| Total Magnification | Visual Field (mm) | Total Magnification | Visual Field (mm) | Total Magnification | Visual Field (mm) | ||
| 115 | 8-50X | 27.5-4.4 | 12-75X | 20.0-3.2 | 16-100X | 15.6-2.5 | |
| 0.5X | 211 | 4-25X | 55.0-8.8 | 6-37.5X | 40.0-6.4 | 8-50X | 31.2-5.0 |
| 0.7X | 136 | 5.6-75X | 39.3-6.3 | 8.4-52.5X | 28.6-4.6 | 11.2-70X | 21.4-3.4 |
| 2X | 43.5 | 16-100X | 13.8-2.2 | 24-150X | 10.0-1.6 | 32-200X | 7.8-1-3 |
Z850

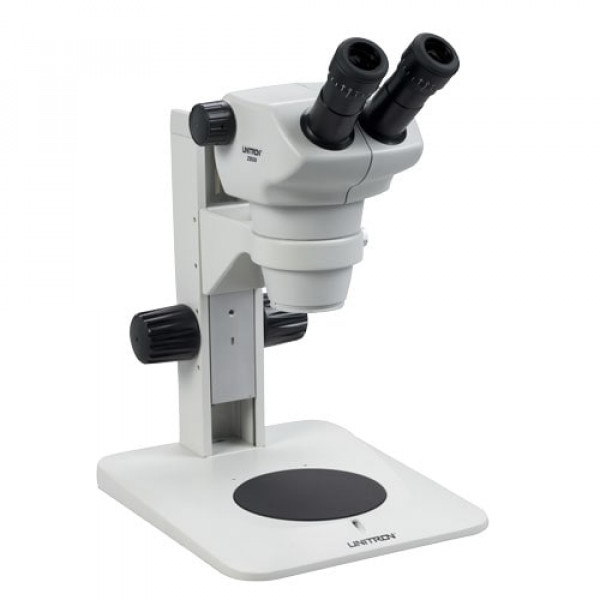

Z850 Zoom Stereo Microscope on Plain Focusing Stand
Catalog #: 13100,13130
Z850 Zoom Stereo Microscope on Pole Stand
Catalog #: 13104,13134
Z850 Zoom Stereo Microscope On Coaxial Coarse/Fine Focusing LED Stand
Catalog #: 13109,13139
Z850 Zoom Stereo Microscope on LED Stand
Catalog #: 13101,13131
Z850 Zoom Stereo Microscope on E-LED Stand
Catalog #: 13108,13138
Z850 Gemological Zoom Stereo Microscope On LED Stand
Catalog #: 13101-GEM, 13131-GEM
Z850 Zoom Stereo Microscope on LED Diascopic Stand
Catalog #: 13110, 13140
Z850 Zoom Stereo Microscope on Boom Stand
Catalog #: 13105,13135
Z850 Zoom Stereo Microscope On Ball Bearing Boom Stand
Catalog #: 13106,13136
Get Quote
