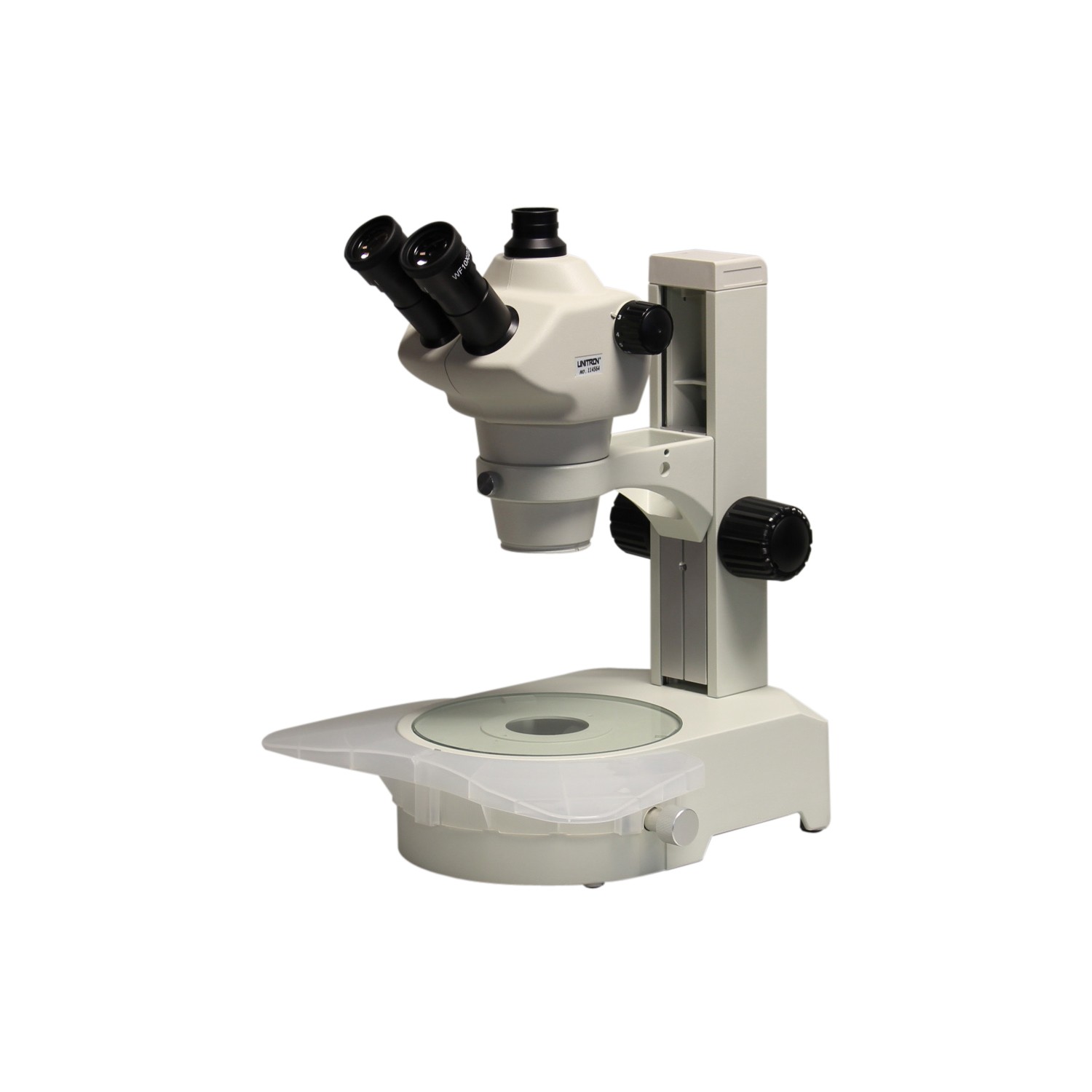

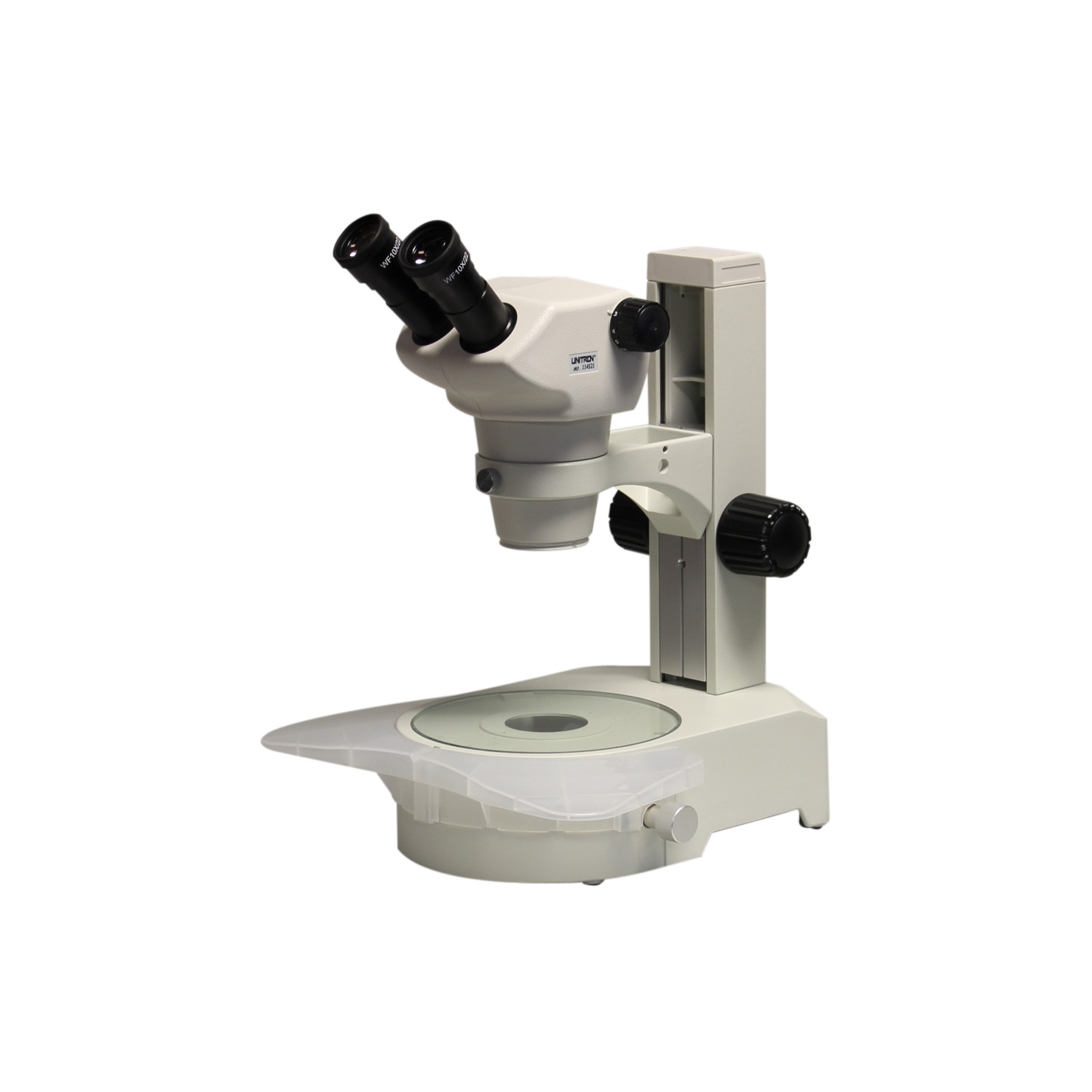

Available with Binocular viewing head with 45° viewing angle, or Trinocular viewing head with 45° viewing angle
Fixed glass lens shield
Widefield 10x/22mm focusing eyepieces
0.8x – 5.0x zoom magnification range
6.3:1 Zoom ratio
Magnification range 8x-50x (with 10x eyepieces), with click stops at 1x, 2x, 3x, 4x and 5x
Interpupillary Distance Adjustment 52mm – 75mm
Field of view 27.5mm - 4.4mm
115mm working distance
Cast aluminum alloy. LED Diascopic Stand, 360° rotatable mirror with polished mirror on one side, silver metallic on the other; variable transmitted (12v3w) coarse focus stand, 100mm focusing travel, ø76mm pod holder, 180mm glass stage plate, plastic arm rest, external control pad, 280mm (L) x 200mm (W) x 390mm (H).
Airtight and anti-mold design

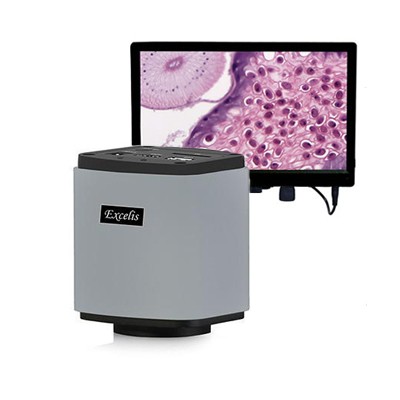

Note: Excelis™ HDS and Excelis HDS Lite cameras are not recommended for use with the Z850 series microscopes
