SKYE WiFi™ 3 Camera
Quick Overview
Specifications
- NEW and improved WiFi connectivity and 4K video recording!
- Runs on Windows PC, Android and Apple (iOS)
- SKYE WiFi 3 cameras are only compatible with SKYE View 3 apps for PC, Android and Apple devices. Download SKYE View 3 PC software and mobile apps by scrolling to the bottom of this page. Download the mobile apps on Google Play and Apple App Store. SKYE View 3 software and apps are compatible with earlier SKYE WiFi cameras (SKYE WiFi and SKYE WiFi 2).
- 12 MP SONY IMX412 Color CMOS sensor
- Built-in 5GHz WiFi adapter, IEEE802.11ac protocol
- Switchable WiFi/USB/Ethernet data connection
- Capture images and view them with SKYE View 3 mobile app
- View live images at 30 frames per second (at full frame 4000px x 3000px)
- Record full 4K video!
- 1/2.3" camera sensor format -- 0.5x C-mount adapter recommended
- Connect up to 13 mobile devices simultaneously to a single SKYE WiFi 3 camera! (up to 3 cameras can operate simultaneously in a classroom environment or over local area network)
- Advanced camera control, image analysis, annotation, measurement, etc. with SKYE View 3 Windows PC software (Included)
- Capture still images and video
- Please review the brochure for Windows, Apple (iOS) and Android system requirements; MacOS is not supported
- NOTE: SKYE WiFi 3 camera is only compatible with SKYE View 3 PC and mobile apps. It is not backward compatible with earlier versions of SKYE View apps.
The SKYE WiFi™ 3 camera brings researchers and educators a new level of convenience and flexibility across a broad range of microscopy imaging applications for documentation, analysis, education and collaboration.
New with the SKYE WiFi 3 is WiFi, USB and Ethernet (LAN) connectivity. Refer to the connectivity chart below for an overview of your connection possibilities.

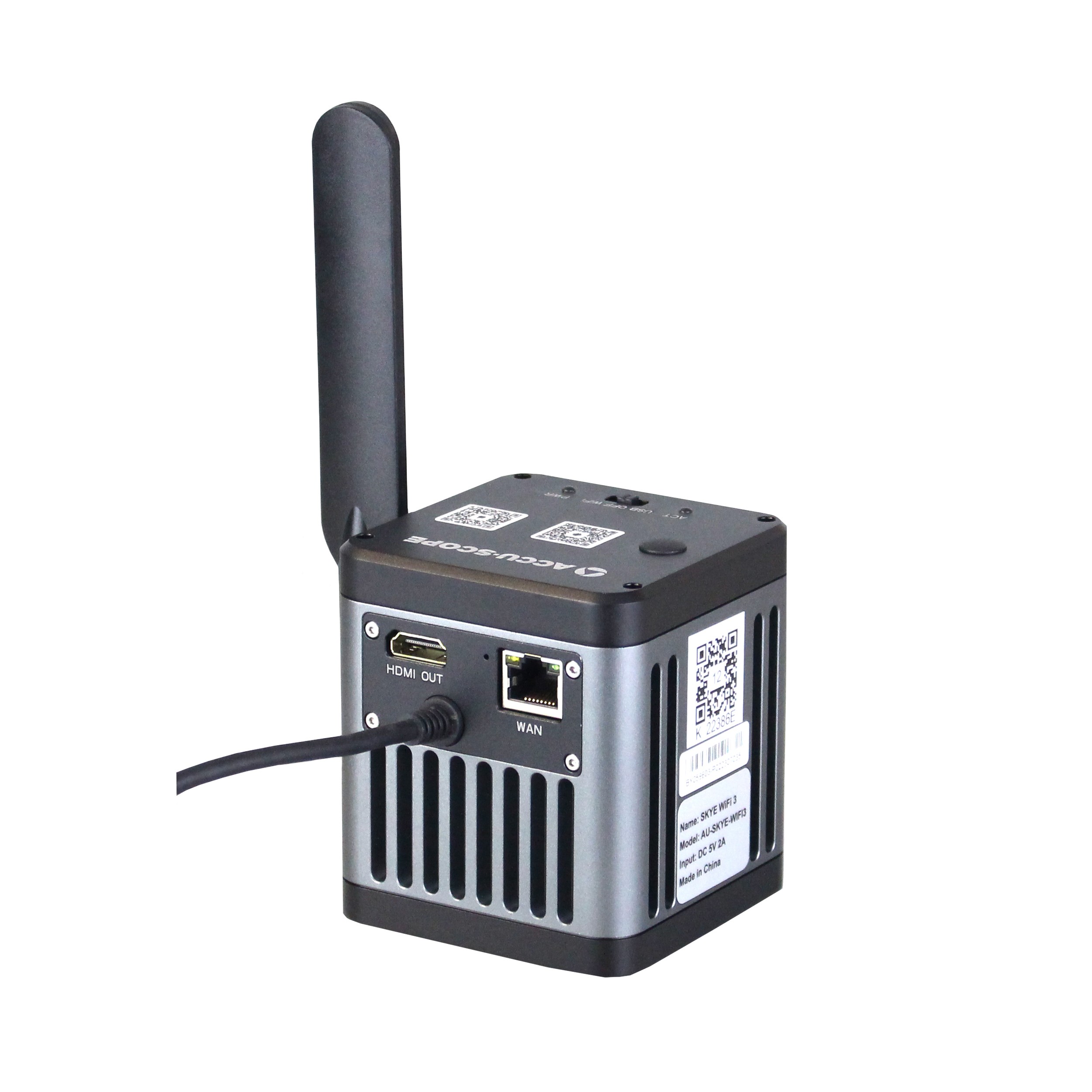

The new HDMI port allows viewing live images on a larger monitor while controlling the camera with a mobile device. Great for instruction, education and training!
Creating its own WiFi network together with a mobile app for Android and iOS devices, the SKYE WiFi camera streams live images at 30 frames per second. The user controls the camera with a WiFi-connected device, while the images can be simultaneously viewed on up to 13 WiFi-connected devices. The SKYE WiFi camera also features a USB mode for image acquisition and viewing through a PC using the included SKYE View™ software.
Upgrade almost any brand of microscope by attaching the SKYE WiFi 3 camera with an industry-standard c-mount adapter, and the 5-megapixel camera sensor will deliver brilliant images with amazing resolution and detail. The SKYE WiFi 3 camera creates a new level of versatility for microscopy imaging for the laboratory and classroom.

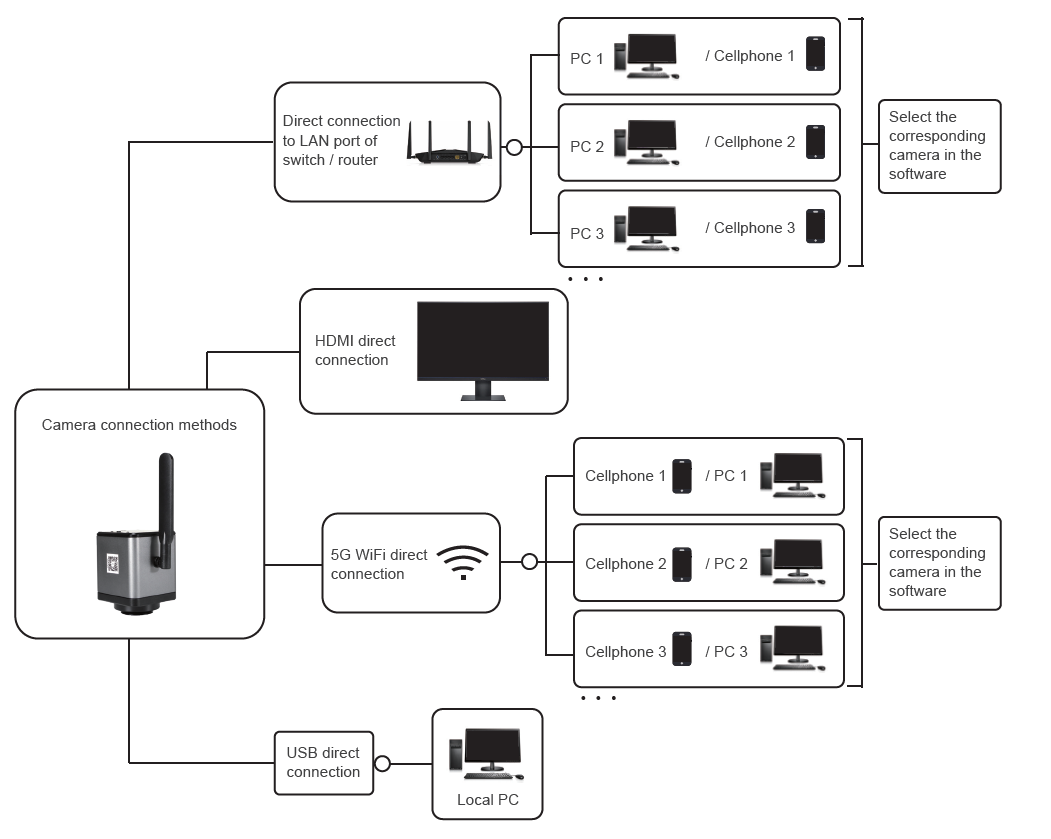

Connectivity Diagram
Camera Specifications
| SKYE WiFi 3 (AU-SKYE-WIFI3) | |
|---|---|
| Sensor | 1/2.3" SONY IMX412 color CMOS, 1.55µm pixels |
| Dynamic/Static Resolution | 12MP, 4000 x 3000 |
| Frame Rate (USB mode and WiFi mode) | 30fps @ 4000 x 3000 |
| Image Capture | Photo storage on mobile device (Android or iOS) via WiFi or to PC via WiFi or USB2.0 |
| Exposure | 10μs - 33ms; Automatic and Manual |
| White Balance | Real-time Auto, Single Auto, and Manual adjustment |
| Other Settings | Brightness, Contrast, Saturation, Resolution, WiFi connection mode (AP Mode and AP Client mode for connecting via facility WiFi router) |
| Imaging Software | SKYE View (mobile app for Android and iOS, PC app for Windows) Image Types: JPEG (only type supported on SKYE View mobile app), TIF, BMP, PNG Video Type: MP4 |
| Output Mode | USB2.0 (to Windows PC ONLY), WiFi (5GHz), Ethernet (LAN), HDMI |
| WiFi Connectivity | 2.4GHz: 802.11n; 5GHz: 802.11n/ac protocol |
| System Requirements | Minimum PC configuration: Windows 10, 64-bit and above (Windows PC only; Mac OS not supported; most tablets are not supported) Intel i7 (10th Gen.) processor or AMD Ryzen 7 processor or better Storage: 512GB SSD hard disk space, or more Memory: 16GB RAM, or more Graphics: Integrated or dedicated GPU (Nvidia RTX 2060 or better recommended) Wireless: Internal wireless network card; 5G WiFi (IEEE 802.11ac supported) USB: USB 3.0 or higher Internet connection: Required for software download Network card (for Ethernet operation): 10/100/1000Mb Gigabit Ethernet, auto adaptive |
| Power Supply | WiFi: DC 5V 500mA Power Cord USB: Direct-connect 5V, power by USB Cable |
| Lens Mount | 0.5x camera adapter recommended |
Download the SKYE View 3 mobile apps here:
Download the SKYE View 3 app for Windows PC HERE
