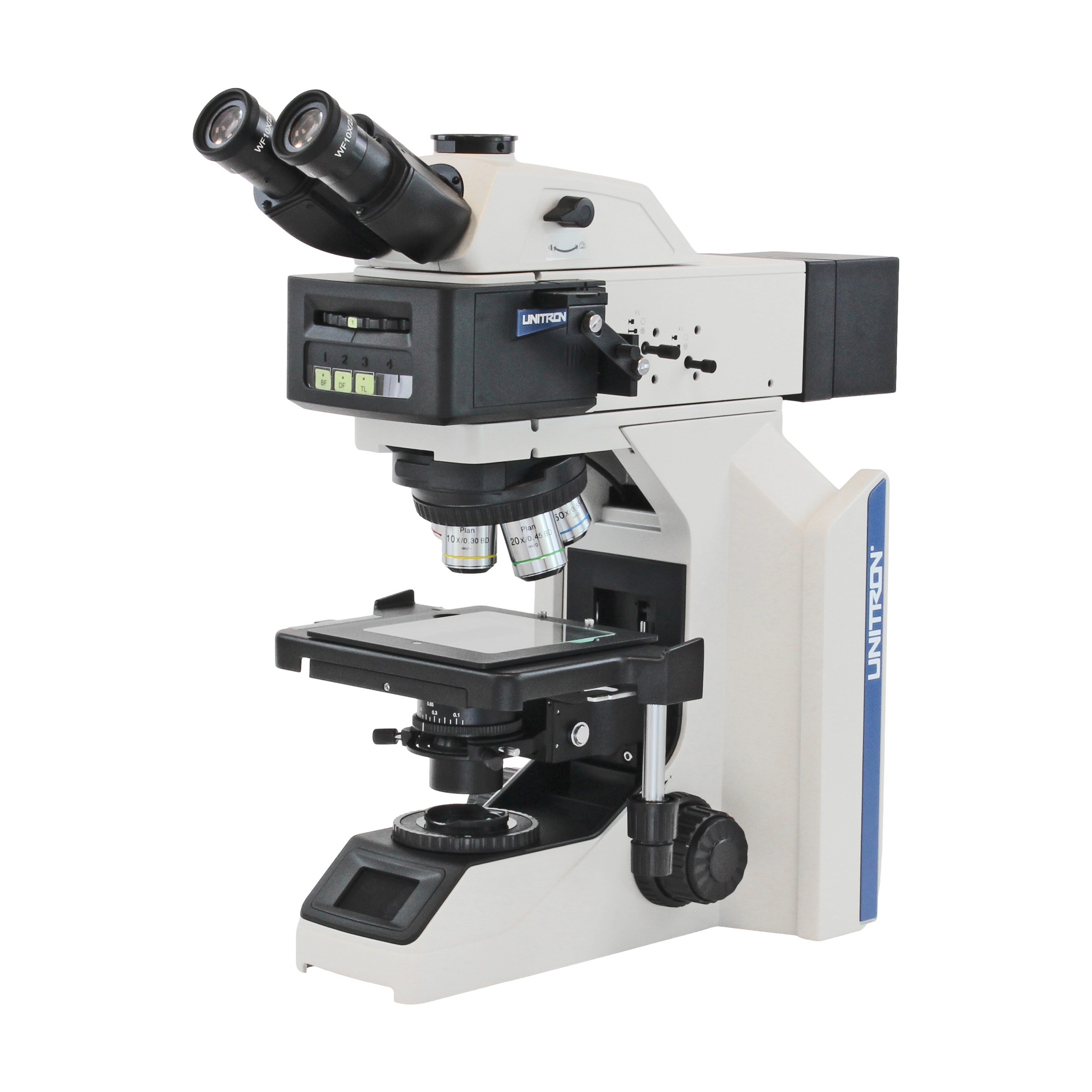

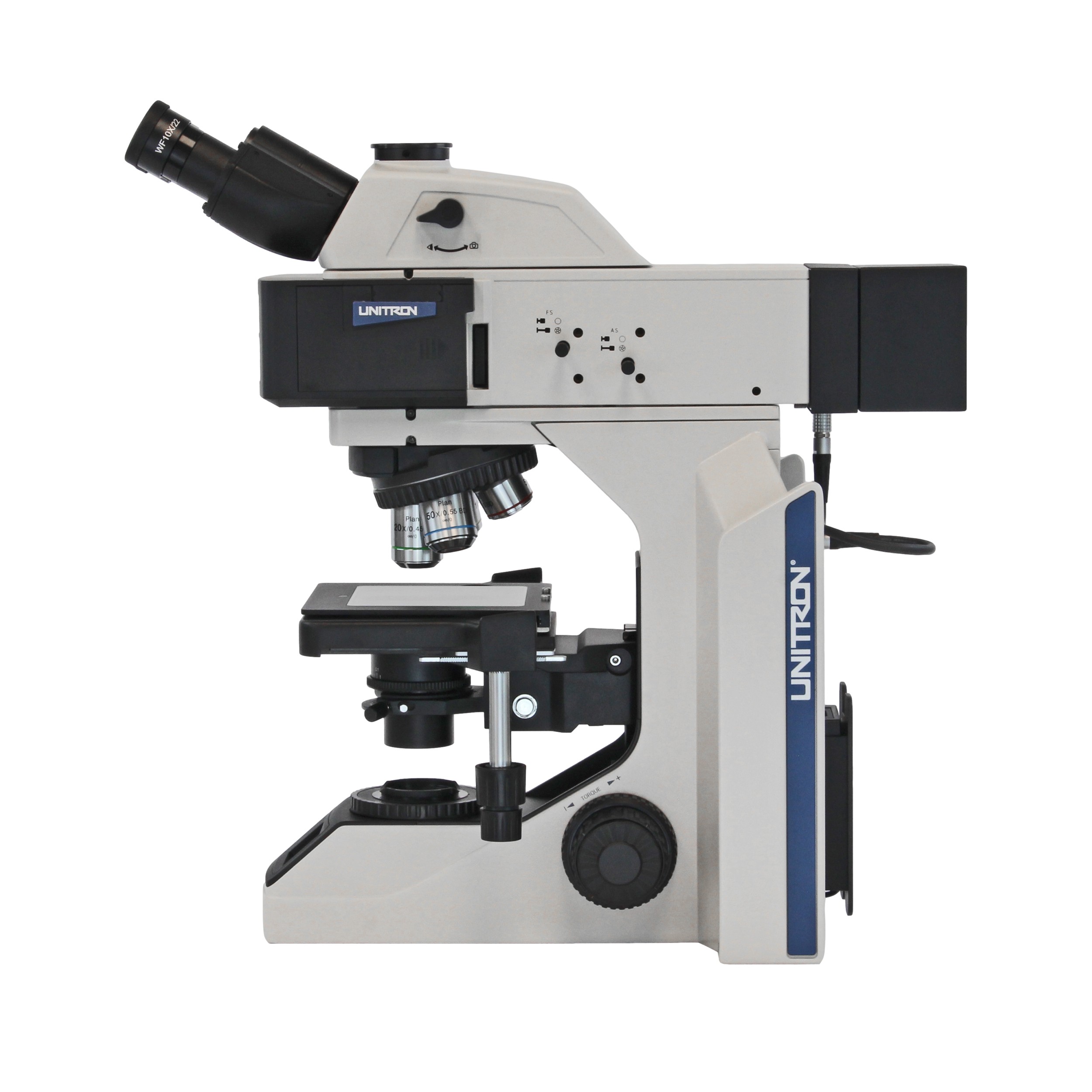

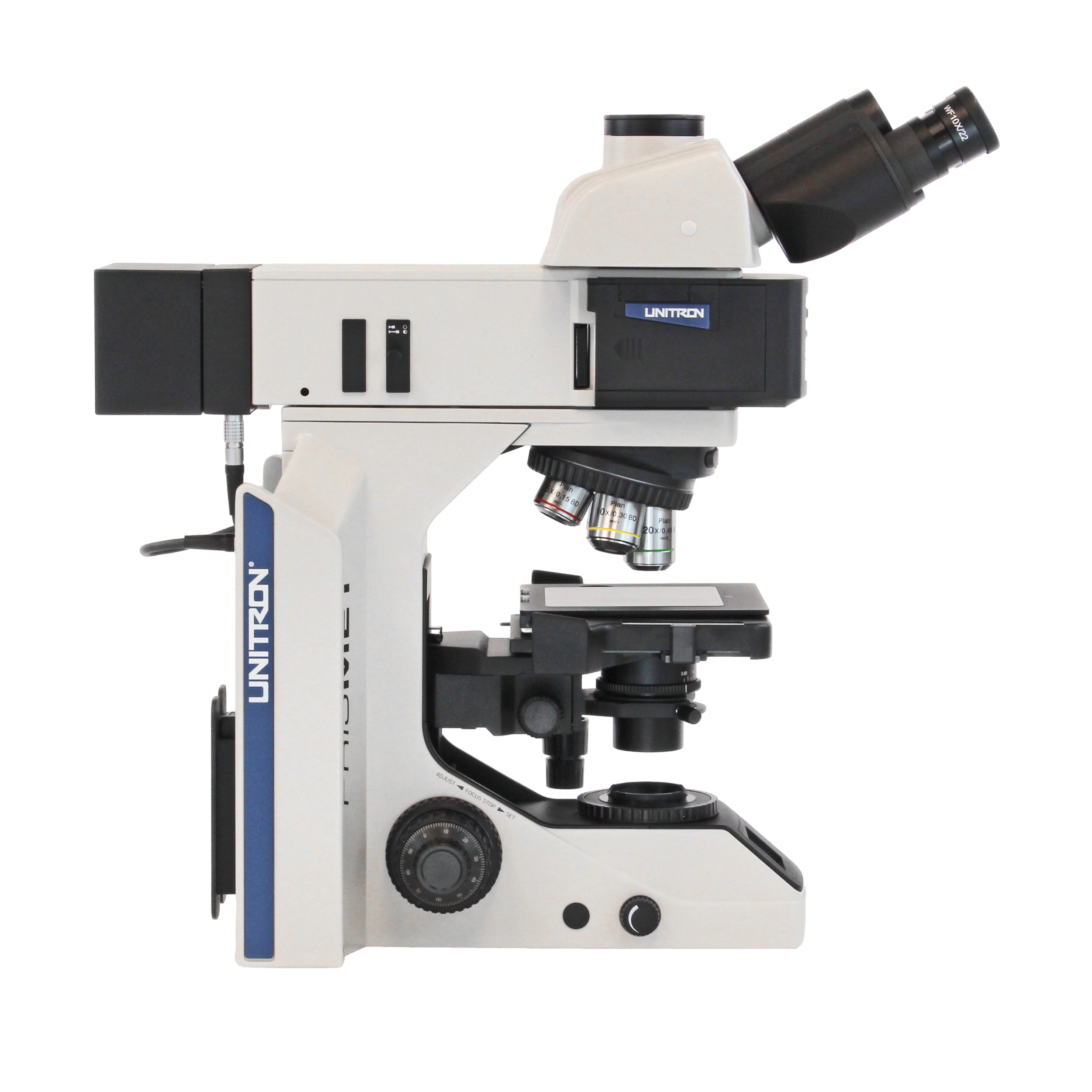

The NEW PrisMET metallurgical microscope is engineered to deliver precise, high-contrast imaging for demanding materials science and metallurgical applications. Designed for the examination of metals, alloys, coatings, and engineered surfaces, PrisMET provides the advanced illumination techniques required to reveal fine microstructural details with clarity and confidence.

The advanced Semi-APO Brightfield/Darkfield Infinity Optics, reflected and transmitted 3W LED illumination, ergonomic design, standard trinocular head offers lever-style switching from 100% to the eyes or 100% to the camera port, plus its digital capabilities make the PrisMET an outstanding and cost effective choice for today's modern metallurgist. The PrisMET comes standard with reflected Brightfield, Darkfield and oblique illumination. Reflected and transmitted polarization is optional, as is reflected Differential Interference Contrast (DIC).

PrisMET is the perfect platform for Metrical metallurgical analysis software. With a dedicated high-performance camera and a logical workflow, Metrical accelerates sample analysis, and delivers accurate and reproducible results.

Specifications

• Trinocular viewing head, inclined 30°; 2-position light path selection 100/0 or 0/100.  Available 0.5x and 1.0x C-mount camera adapters.
• Widefield 10x eyepieces with a 22mm field of view
• Infinity semi-APO 5x, 10x, 20x and 50x BF/DF objectives; optional 100x BF/DF objective
• Coded quintuple nosepiece
• Front LCD display shows status of objective magnification, light intensity and color temperature
• Supported contrast methods: Brightfield, darkfield, oblique illumination (reflected only), polarization (optional), Differential Interference Contrast (optional: DIC; reflected only)
• Interpupillary distance adjustment 48mm – 75mm
• Abbe condenser, NA 0.65
• Double-layer rackless mechanical stage (186mm x 138mm) with glass insert, 74mm (X) x 50mm (Y) movement range; optional wafer holder
• Low position coaxial focusing system with tension adjustment
• Observation sample height of up to 50mm
• 3-watt variable S-LED reflected illuminator with field and aperture diaphragm and adjustable color temperature and Light Intensity Management
• 3-watt variable S-LED transmitted illumination with adjustable color temperature and Light Intensity Management
• Universal power supply (90v-240v)
• Shipping weight 40lbs.
