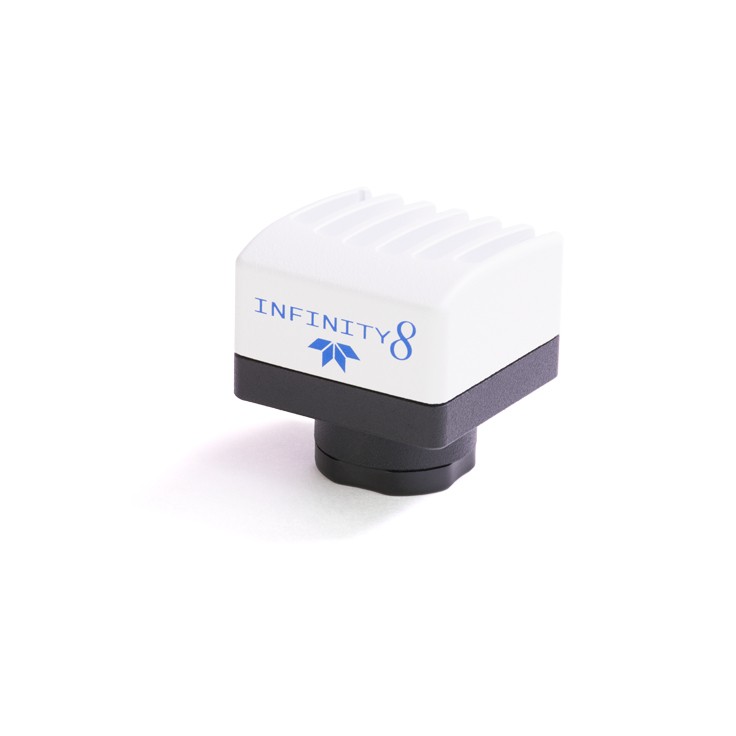

Ultra High-Resolution Microscope Camera
The ultra high-resolution INFINITY8-20C camera, with a large Field of View, is optimized for fast sample focusing to capture every detail even with low magnification. This makes it an ideal choice for biological and material industrial samples.
Ultra High Resolution
The INFINITY8-20C brings a 5472 x 3648 resolution to any c-mount microscope. This large one-inch sensor provides great sensitivity even in challenging light environments. Instead of worrying about pixel shifting or using other mechanical movements to image specific details, the INFINITY8-20C captures 20-megapixel images with a single click.
Large Field of View
With the high resolution of the INFINITY8-20C, capture images with a large field of view (FoV). This allows for a single image to capture more of a sample without needing to take multiple images. A 1X coupler also helps to reduce the costs of your overall set up.
Accurate Color Reproduction
The INFINITY8-20C is designed with Sony’s advanced CMOS sensor technology. Coupled with Teledyne Lumenera’s extensive expertise working with applications requiring critical color reproduction and consistency, the colors in your sample will appear true to life and with a high level of contrast.
| Camera Sensor | ||
|---|---|---|
| Image Sensor | SONY IMX183; CMOS format, color, 1” diagonal | |
| Effective Pixels | 5472×3648, 2.4μm square pixels | |
| Frame Rate | 20 fps maximum at full resolution in 8-bit; 10 fps in 12-bit | |
| Signal/Noise | 41.7 dB | |
| Digital Output | 8 or 12-bit | |
| Read Noise | 3.4 e- | |
| Camera Controls | ||
| Mass | 108g | |
| Power Requirement | 5V via Power Over USB3 Cable. | |
| Power Consumption | ~3.6 Watts | |
| Operating Temperature | 0° C to 50° C | |
| Operating Humidity | 10%-70%, Non-condensing | |
| Integration Time | Programmable in increments of 1μs; minimum (in μs) is 14 μs maximum is 76 minutes; Pulse controlled via Trigger pulse width. | |
| Shutter | Rolling Shutter with Global row reset function | |
| ROI | Full Frame | |
| Exposure Mode | Automatic / Manual | |
| White Balance | Automatic / Manual | |
| Gain | In-sensor Gain; 45 dB | |
| Interface Connector | USB 3.1 connector, A-male to computer | |
| Dimensions (L x W x H) | 41.5 mm (max) x 45 mm x 45 mm | |
| Lens Mount | C-Mount lens adapter | |
| Binning Options | 2 x 2 | |
Product Includes:
- I8-LC00-20M INFINITY8-20C – 20MP digital camera with 3m USB 3 cable (A-Male to Micro-B male Locking)
- DVD with INFINITY user application software, TWAIN driver, Documentation
